Elsys ERS Desk | ELS-ERS-DESK
LoRa table occupancy sensor
Detects in real time whether any table/workstation is currently occupied Further values: temperature, humidity Enormous wireless range – no comparison with WiFi Low maintenance due to long battery life Plug & play integration with the LineMetrics platform
Description
The LoRa desk occupancy sensor anonymously detects the occupancy of office workstations (desks) using body heat. It transmits in real time whether a workstation is currently in use or not. The current status information can be used, for example, for table reservation systems or indoor navigation to the nearest free desk. Detailed statistics show overall utilization, usage trends and cleaning requirements.
Temperature and humidity data help to record, document and optimize individual working conditions.
The sensor also has a long radio range inside buildings and a battery life of up to 5 years. Thanks to a special transmission protocol, maximum availability of the measured values (>99%) can be achieved even at long ranges and in challenging environments. Thanks to its flexible mounting, this sensor is suitable for any table or desk, for example in offices or schools.
Technical data
-
- Temperature: 0 – 50 °C (+-0.2°C)
- Humidity: 0 – 85% RH (+-2%)
- Table occupancy: Detection angle 90°, recommended distance max. 20 cm
- Transmission interval: Table occupancy event-based (real time!), temperature and humidity every 15 minutes
- Data availability: >99% even at long radio distance
- LoRa radio range: max. 8km outdoor / some 100m indoors
- Power supply: 2x 3.6 V AA lithium batteries, runtime depends on connection quality Sensor <-> LoRa Gateway
- Application environment: Indoor environments such as offices, schools, etc. (not suitable for outdoor or industrial environments!)
- Size & weight: 86 x 86 x 28 mm, 100 g incl. Battery
- Scope of delivery: Sensor, instructions, QR sticker, mounting material
- Data sheet (English, manufacturer)
- User manual (English, manufacturer)
Measuring points
Data acquisition
- Infrared thermometers are used to detect whether an office workstation is occupied.
- A digital signal (occupied/not occupied) is transmitted in real time.
- Detection angle: 90°
Visualization

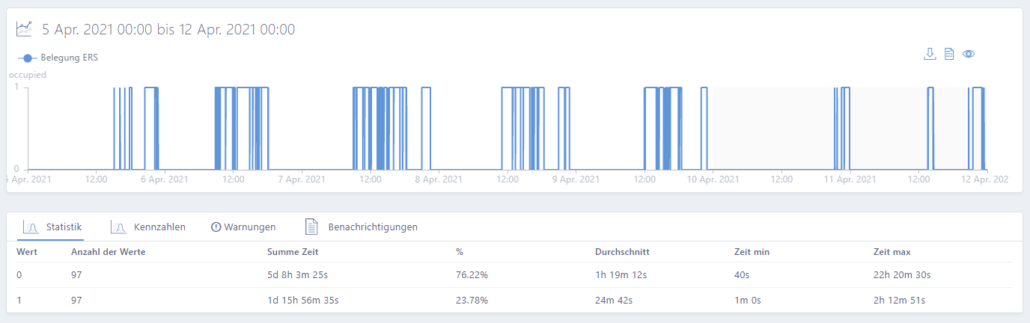

History of the occupancy of an office workstation in the LineMetrics office over the course of a week. The automatically generated statistics provide a quick overview of the degree of utilization of the workstation.
Data acquisition
- The indoor air temperature (e.g. office, classroom) is transmitted every 15 minutes.
- Value range: 0 – 50°C (resolution: 0.1°C; accuracy: +/- 0.2°C)
Visualization
Visualization / screenshot as line diagram (1-hour resolution):
Temperature profile of a month in a LineMetrics office. As can be seen from the ranges, the majority of the measured values are within the optimum temperature range for an office. The color-coded areas can be configured individually.
Data acquisition
- The relative humidity indoors is transmitted every 15 minutes.
- Value range: 0 – 85% RH (resolution: 0.1% RH; accuracy: +/- 2% RH)
Visualization
Relative humidity curve over an entire month in a LineMetrics office.
Tested for you: The best sensor on the market
This sensor has prevailed against comparable models in our test laboratory and has proven itself in practice.
Enorme Funkreichweite: Ganze Gebäude abdecken
Many kilometers of range outdoors or hundreds of meters indoors – no comparison with WiFi! More >
Battery-operated with up to 5 years runtime
LoRa radio is very energy efficient. Depending on the quality of the wireless connection, the batteries will last for many years.
Plug & Play integration into the overall system
It’s easy to obtain your first measurement data in just a few minutes thanks to the modular system – from the sensor to the cloud.
Your benefits with the LineMetrics platform
All-in-one: A complete system for room monitoring
1. Record table occupancy
The battery-operated wireless sensor can be mounted under any table. It reliably records all values and transmits them via LoRa.
2. transmit measurement data
The LoRa wireless gateway creates a wireless network for up to 1,000 sensors. The collected measurement data is transmitted to the cloud via mobile radio.
3. evaluate and alert
All sensors are managed and all measurement data stored in the cloud. Analyses, alerts and data integration via API are easily possible.
What is behind it? Find out what LineMetrics can do to help you easily obtain the measurement data you need.
Developing and operating an IoT-based monitoring solution is more complex than many people think. Here is just a small excerpt of what LineMetrics can do for you in the background so that you can easily and reliably obtain the measurement data you need:
- Selection of international suppliers, supply chain management and price negotiations
- Selection and testing of individual hardware devices, hardware quality management
- Device and firmware management
- Optimizations in terms of radio range and battery life
- Database management
- Connectivity management (SIM cards)
- Security and encryption, including updates
- Creation of instructions and support during rollout
- 24/7 monitoring of the entire solution, support in the event of problems
