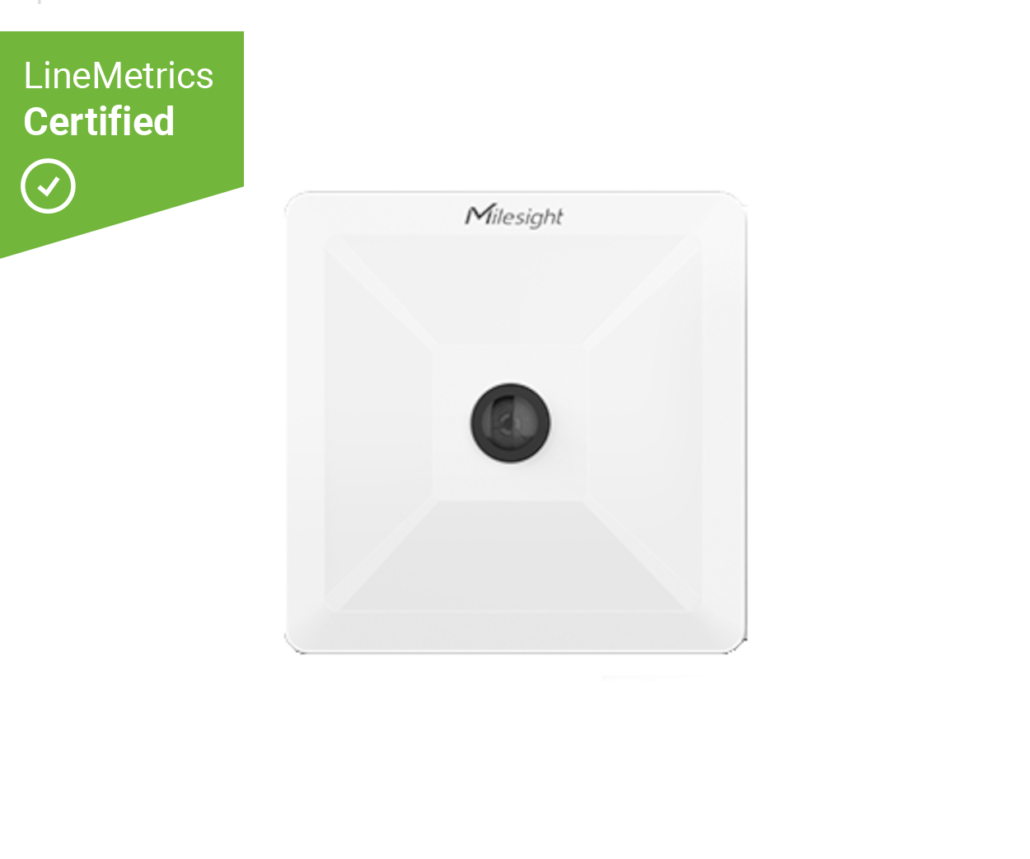

Milesight VS121 | MIL-VS121
LoRa Raumbelegungssensor Vision
Enormous wireless range – no comparison with WiFi
Low maintenance due to long battery life
Plug & play integration with the LineMetrics platform
Description
The LoRa room occupancy sensor Vision is a state-of-the-art AI-based workplace sensor specifically designed to monitor the occupancy and utilization of modern work environments. With an impressive detection rate of up to 98% thanks to advanced AI algorithms, this sensor sets new standards in the efficiency and accuracy of room monitoring. It is compatible with the Linemetrics platform, making it easy to evaluate and analyze the collected data. The sensor can be configured using a local WLAN. With these comprehensive functions, the LoRa room occupancy sensor Vision is a key tool for the intelligent and efficient design of modern workplaces.
Technical data
- Field of vision: 190° horizontal, 112° vertical
- Covered area: 78m² (R=5m, H=3m)
- Installation height: 2.5 m to 4 m
- Transmission interval: 5 minutes
- Data availability: >99% even at long radio distances
- LoRa radio range: max. 8km outdoor / some 100m indoors
- Power supply: 5VDC / 1.5A via USB type C
- Application environment: Indoor areas such as offices, schools, etc. (not suitable for outdoor or industrial environments!)
- Size: 85 x 85 x 20 mm
- Scope of delivery: Sensor, instructions, QR sticker, mounting material
- Data sheet (English, manufacturer)
- User manual (English, manufacturer)
Measuring points
Data acquisition
- The sensor detects the number of people in a room
Visualization
Number of people in a business premises over the course of a week.
Data acquisition
- The sensor detects whether a room is currently occupied.
Visualization
Course of room occupancy over the course of a week (1 = occupied; 0 = free).
Note: The heat sensor may also detect other hot objects (e.g. hob).
Tested for you: The best sensor on the market
This sensor has prevailed against comparable models in our test laboratory and has proven itself in practice.
Enorme Funkreichweite: Ganze Gebäude abdecken
Many kilometers of range outdoors or hundreds of meters indoors – no comparison with WiFi! More >
Plug & Play integration into the overall system
It’s easy to obtain your first measurement data in just a few minutes thanks to the modular system – from the sensor to the cloud.
Your benefits with the LineMetrics platform
All-in-one: A complete system for room monitoring
1. Record room utilization
The mains-powered wireless sensor can be installed in any room. It reliably records all values and transmits them via Lora.
2. transmit measurement data
The LoRa wireless gateway creates a wireless network for up to 1,000 sensors. The collected measurement data is transmitted to the cloud via mobile radio.
3. evaluate and alert
All sensors are managed and all measurement data stored in the cloud. Analyses, alerts and data integration via API are easily possible.
What is behind it? Find out what LineMetrics can do to help you easily obtain the measurement data you need.
Developing and operating an IoT-based monitoring solution is more complex than many people think. Here is just a small excerpt of what LineMetrics can do for you in the background so that you can easily and reliably obtain the measurement data you need:
- Selection of international suppliers, supply chain management and price negotiations
- Selection and testing of individual hardware devices, hardware quality management
- Device and firmware management
- Optimizations in terms of radio range and battery life
- Database management
- Connectivity management (SIM cards)
- Security and encryption, including updates
- Creation of instructions and support during rollout
- 24/7 monitoring of the entire solution, support in the event of problems
Cloud platform: Analyze and process measured values
The LineMetrics Cloud allows you to create individual dashboards on which you can keep an eye on the data that is most important to you. Measured values can be displayed, combined and colored in the form of bars, curves, dial gauges, etc. This screenshot shows past and current measured values of the sensor:
Warning messages can be created for individual ranges/limit values and provided with a trigger delay. This means that no warning is sent if critical values are only briefly exceeded. A second condition for triggering a warning can also be configured.
Alerts can be sent by e-mail (see screenshot) or SMS. The recipient, subject and message can be easily configured individually.
Plug & play: obtain measurement data quickly and easily (< 3 minutes!)
The LineMetrics complete solution enables the solution to be commissioned via plug & play – without technicians, IT department, cable laying and network access. We will send you all the hardware with all accessories and simple commissioning instructions. The first measurement data can be analyzed in the LineMetrics Cloud within a few minutes. For questions, problems and tips, we have set up a comprehensive service center for you and can of course also be contacted personally at any time.
Video shows commissioning of the LoRa CO2 sensor – the procedure for the indoor sensor is the same.
Instructions included
Specially created commissioning and installation instructions, printed and available online. Example >
Includes LiSOCl2 batteries
Highest energy density and constant voltage level over the entire discharge period.
Mounting material included
3M VHB adhesive pads and/or screws (TX20) as well as dowels from Würth are included.
Includes QR Code Sticker
Read measured values on your cell phone: Simply scan the QR code and view the values. Try it out >
Enterprise-ready: The flexible and future-proof business solution
Strict quality criteria
Our quality requirements include not only certified hardware, but of course also the security of your data. LineMetrics therefore relies exclusively on highly encrypted communication and multiple redundant servers in high-security data centers in the DACH region.
Efficient roll-out
A fast and cost-effective roll-out is possible with employees on site, no matter how many locations, no matter where in Europe. Everything required for commissioning and operating the solution is included – right down to the SIM card with LTE data package.
Professional support
A competent contact for questions, whether it’s about sensors, wireless connections, databases or dashboards. In addition, the help center, knowledge base and support ticket system are available 24/7.
Simple integration (API)
Existing software and apps can continue to be used and automatically enriched with sensor data via API. This does not change existing processes and IT systems.
