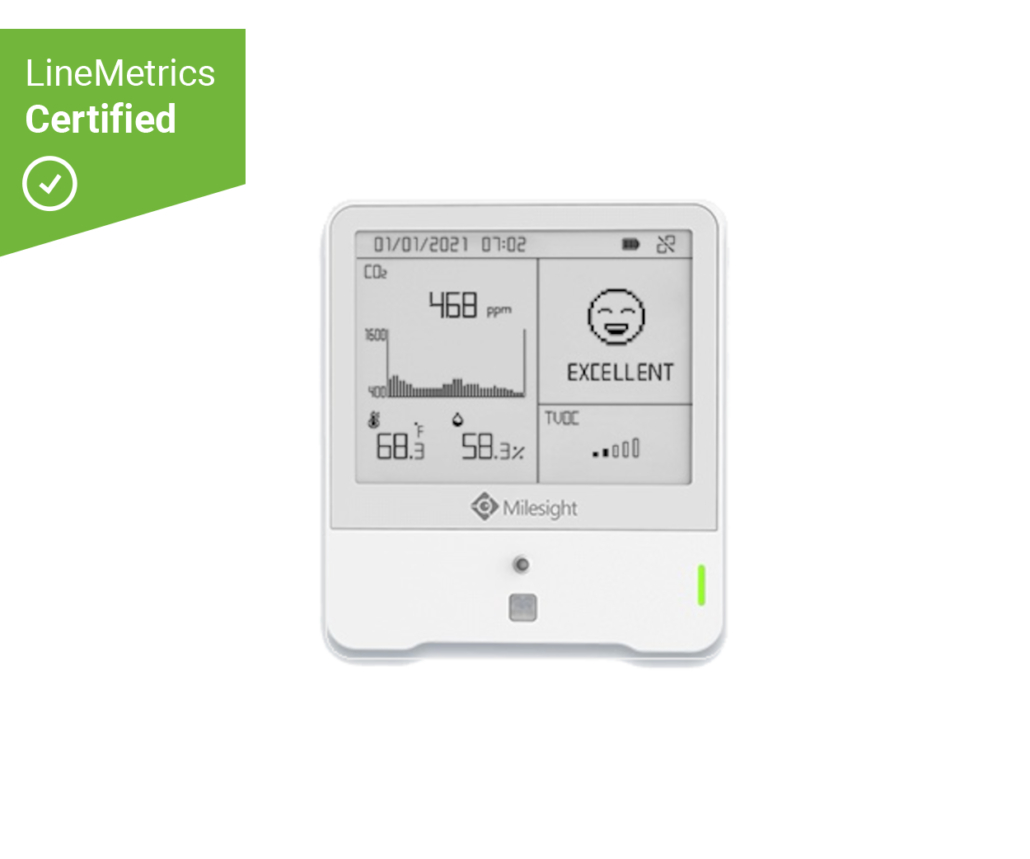

Milesight AM307 | MIL-AM307
LoRa 7-in-1 Raumklima Sensor (inkl. Display)
Display for a quick overview of data
Enormous wireless range – no comparison with WiFi
Replaceable batteryery with a service life of around 3 years
Plug & play integration with the LineMetrics platform
Description
The LoRa 7-in-1 indoor climate sensor is an advanced sensor for monitoring the indoor environment, ideal for use in offices, stores, classrooms and hospitals. This compact sensor precisely measures temperature, humidity, light, CO2 concentration, volatile organic compounds (TVOC), barometric pressure and movement. The real-time data is displayed on an e-ink screen, which enables an immediate assessment of room comfort. The LoRa 7-in-1 room climate sensor uses LoRaWAN® technology for wireless data transmission, which, in conjunction with the Linemetrics platform, enables simple and efficient remote management of sensor data. With these functions, the sensor offers a comprehensive solution for monitoring and improving indoor air quality.
Technical data
- Temperature: -20° to +60 °C (+/- 0.2°C)
- Humidity: 0 to 100% RH (+/- 2%)
- Movements: Digital signal whether movements have been detected, detection range: Horizontal 80°, vertical 55°, up to 5m distance
- CO2: 400 to 5000ppm (+/- 30ppm + 3% of reading)
- tVOC: 1 to 5 IAQ rating
- Air pressure: 260 to 1260 hPa (+/- 0.5 hPa)
- Light status: Light intensity divided into 6 levels (see user manual for a more detailed description)
- Transmission interval: 10 minutes
- Data availability: >99% even at long radio distances
- LoRa radio range: max. 8km outdoor / some 100m indoors
- Power supply: 4x 2700 mAh ER14505 Li-SOCL2 battery, runtime depending on connection quality Sensor <-> LoRa Gateway (approx. 3 years with average connection)
- Application environment: suitable for indoor applications such as offices, classrooms, business premises
- Size & weight: 100 x 114 x 22 mm, 200 g incl. Battery
- Scope of delivery: Sensor, instructions, QR sticker, mounting material
- Data sheet (English, manufacturer)
- User manual (English, manufacturer)
Measuring points
Data acquisition
- The air temperature is recorded and transmittedevery 10 minutes.
- Value range: -20° to 60°C (+/- 0.2°C)
Visualization
Visualization / screenshot as line diagram (1-hour resolution):
Temperature profile of a month in a LineMetrics office. As can be seen from the ranges, the majority of the measured values are within the optimum temperature range for an office. The color-coded areas can be configured individually.
Data acquisition
- The relative humidity is recorded andtransmitted every 10 minutes.
- The optimum operating range of the sensor is between 10% and 90% RH. Outside this area, make sure that the environment is non-condensing.
- Value range: 0% – 100% RH (+/- 2%)
Visualization
Relative humidity curve over an entire month in a LineMetrics office.
Data acquisition
- The CO2 level is recorded and transmittedevery 10 minutes.
- Value range: 400 – 5,000 ppm (+/-30 ppm/+-3%)
Visualization
Visualization / screenshot as line diagram (1-hour resolution):
Development of a CO2 level over the course of a month incl. Areas (and statistics) in the LineMetrics Cloud. The color-coded areas can be configured individually.
Data acquisition
- The air pressure is recorded and transmittedevery 10 minutes.
- Value range: 260 hPa to 1260 hPa
Visualization
This screenshot shows the progression of air pressure in an office.
Tested for you: The best sensor on the market
This sensor has prevailed against comparable models in our test laboratory and has proven itself in practice.
Enorme Funkreichweite: Ganze Gebäude abdecken
Many kilometers of range outdoors or hundreds of meters indoors – no comparison with WiFi! More >
Battery-operated with up to 3 years runtime
LoRa radio is very energy efficient. Depending on the quality of the wireless connection, the batteries will last for many years.
Plug & Play integration into the overall system
It’s easy to obtain your first measurement data in just a few minutes thanks to the modular system – from the sensor to the cloud.
Your benefits with the LineMetrics platform
All-in-one: A complete system for room monitoring
1. Record indoor climate data
The battery-operated wireless sensor can be installed anywhere, e.g. in stores, classrooms or offices. It reliably records all values and transmits them via LoRa.
2. transmit measurement data
The LoRa wireless gateway creates a wireless network for up to 1,000 sensors. The collected measurement data is transmitted to the cloud via mobile radio.
3. evaluate and alert
All sensors are managed and all measurement data stored in the cloud. Analyses, alerts and data integration via API are easily possible.
What is behind it? Find out what LineMetrics can do to help you easily obtain the measurement data you need.
Developing and operating an IoT-based monitoring solution is more complex than many people think. Here is just a small excerpt of what LineMetrics can do for you in the background so that you can easily and reliably obtain the measurement data you need:
- Selection of international suppliers, supply chain management and price negotiations
- Selection and testing of individual hardware devices, hardware quality management
- Device and firmware management
- Optimizations in terms of radio range and battery life
- Database management
- Connectivity management (SIM cards)
- Security and encryption, including updates
- Creation of instructions and support during rollout
- 24/7 monitoring of the entire solution, support in the event of problems
Cloud platform: Analyze and process measured values
The LineMetrics Cloud allows you to create individual dashboards on which you can keep an eye on the data that is most important to you. Measured values can be displayed, combined and colored in the form of bars, curves, dial gauges, etc. This screenshot shows past and current measured values of the sensor:
Warning messages can be created for individual ranges/limit values and provided with a trigger delay. This means that no warning is sent if critical values are only briefly exceeded. A second condition for triggering a warning can also be configured.
Alerts can be sent by e-mail (see screenshot) or SMS. The recipient, subject and message can be easily configured individually.
Plug & play: obtain measurement data quickly and easily (< 3 minutes!)
The LineMetrics complete solution enables the solution to be commissioned via plug & play – without technicians, IT department, cable laying and network access. We will send you all the hardware with all accessories and simple commissioning instructions. The first measurement data can be analyzed in the LineMetrics Cloud within a few minutes. For questions, problems and tips, we have set up a comprehensive service center for you and can of course also be contacted personally at any time.
Video shows commissioning of the LoRa CO2 sensor – the procedure for the indoor sensor is the same.
Instructions included
Specially created commissioning and installation instructions, printed and available online. Example >
Includes LiSOCl2 batteries
Highest energy density and constant voltage level over the entire discharge period.
Mounting material included
3M VHB adhesive pads and/or screws (TX20) as well as dowels from Würth are included.
Includes QR Code Sticker
Read measured values on your cell phone: Simply scan the QR code and view the values. Try it out >
Enterprise-ready: The flexible and future-proof business solution
Strict quality criteria
Our quality requirements include not only certified hardware, but of course also the security of your data. LineMetrics therefore relies exclusively on highly encrypted communication and multiple redundant servers in high-security data centers in the DACH region.
Efficient roll-out
A fast and cost-effective roll-out is possible with employees on site, no matter how many locations, no matter where in Europe. Everything required for commissioning and operating the solution is included – right down to the SIM card with LTE data package.
Professional support
A competent contact for questions, whether it’s about sensors, wireless connections, databases or dashboards. In addition, the help center, knowledge base and support ticket system are available 24/7.
Simple integration (API)
Existing software and apps can continue to be used and automatically enriched with sensor data via API. This does not change existing processes and IT systems.
