LineMetrics Box
Data logger for reading out existing technical systems
Simply plug in and get started – perfect for a quick and reliable overview!
With the LineMetrics Box, you can record the status of your technical systems and sensors in the shortest possible time.
It has 8 universal inputs for all types of signals and Modbus RTU for maximum flexibility.
The integrated SIM card and the international data package ensure a secure and uncomplicated mobile phone connection.
Record existing systems & sensors
Record operating times, fault messages, etc. from your existing technical systems or simply access measured values from existing sensors.
Always connected with integrated SIM card
All data is transmitted to the cloud via mobile communications. Thanks to the worldwide data flat rate, there are no transfer fees. An IT connection is not required.
Plug & Play – connect to power, done!
Commissioning couldn’t be easier: Connect the data logger to the 220V socket and the connection to the cloud will be established automatically – your data logger is in use!
High-frequency data acquisition possible
If measurement intervals of several minutes are not sufficient, the LineMetrics Box can be used to record high-resolution values, for example for peak loads.
LineMetrics Box – Data logger
Model LM-BOX
The LineMetrics Box records sensor data and statuses, processes them and sends the results securely to the LineMetrics Cloud via an integrated SIM card – around the clock and around the world.
It offers 8 universal inputs (0-10V, status, edge counter) and a Modbus RTU interface for wired connections.
In addition, up to 10 wireless sensors (LineMetrics Wireless, Mesh network) can be connected.
LM-BOX-LIGHT model
The LineMetrics Box Light offers all the functions of the LM-BOX, but cannot connect wireless sensors.

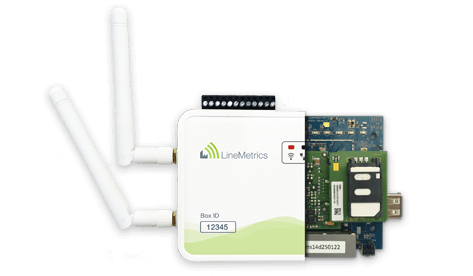

Smart technology, cleverly hidden
- 8 flexible inputs and wireless operation for maximum freedom.
- Our special technology ensures stable mobile communication, even with a weak signal.
- Up to 10,000 data values are stored securely, even in the event of a complete mobile phone failure.
- Maximum security: The LineMetrics Box uses e-banking level encryption.
Universal Interfaces
The LineMetrics Box easily records various signals:
It supports 0-10V standard signals, digital signals and RS-485 Modbus RTU.
This allows you to monitor many machines and signals effortlessly.
